CEILING LIGHTS

SoffitLite

The SoffitLite is designed to provide light under large overhangs without being visually intrusive. Its recessed mounted design produces a neat, clean look, and its fluorescent lamps provide energy-efficient, long-lasting illumination.

Download Product Files:

PDF | IES | CAD

LUMENS (72W)

TO 277 VAC

LUMENS / WATT

Model: MF-2950-LED-36
Input Voltage: 120~277VAC
Wattage: 36 Watts
Lumen Output: 4500 Lm
Certifications: UL 1598
Model: MF-2950-LED-54
Input Voltage: 120~277VAC
Wattage: 54 Watts
Lumen Output: 6750 Lm
Certifications: UL 1598
Model: MF-2950-LED-72
Input Voltage: 120~277VAC
Wattage: 72 Watts
Lumen Output: 9000 Lm
Certifications: UL 1598
SE Side Entry Knockouts
F Fuse Assembly
ACR Acrylic Lens
TX Torx Lens Security Screws
EM Battery Backup
3K 3000K Color Temperature
4K 4000K Color Temperature

Download Product Files:

PDF | IES | CAD

CONSTRUCTION

The SoffitLite LED housing is fabricated from .09″ thick aluminum with a polycarbonate lens. The box and door can be customized to larger configurations. All hard-wired components are stainless steel.

LENS:

The Polycarbonate diffuser lens is 1/4″ thick to resist damage from vandalism when used in public areas. Glass and thinner lenses are optional.

LED LIGHT ENGINE:

MagniFlood’s unparalleled light engine design is the best in the industry. Our engineers have developed a heat-dissipating technology that increases LED life dramatically. These engines can also be replaced without having to remove the luminaire. The luminaire is manufactured to meet the 1598 UL listing. All luminaires are pre-wired and factory tested. The LED engines operate from 120v to 265v (277v available on request). The engine concentrates its light onto a specially-designed speculator reflector to give an even distribution with full cut off.

FINISH

Standard finish is a TGIC polyester acrylic powder coat in MagniBronze. Other colors are available from the factory on request.

LED LIGHT ENGINE:

MagniFlood’s unparalleled light engine design is the best in the industry. Our engineers have developed a heat-dissipating technology that increases LED life dramatically. These engines can also be replaced without having to remove the luminaire. The luminaire is manufactured to meet the 1598 UL listing. All luminaires are pre-wired and factory tested. The LED engines operate from 120v to 265v (277v available on request). The engine concentrates its light onto a specially-designed speculator reflector to give an even distribution with full cut off.

FINISH

Standard finish is a TGIC polyester acrylic powder coat in MagniBronze. Other colors are available from the factory on request.

REFLECTOR

Gloss White Reflector

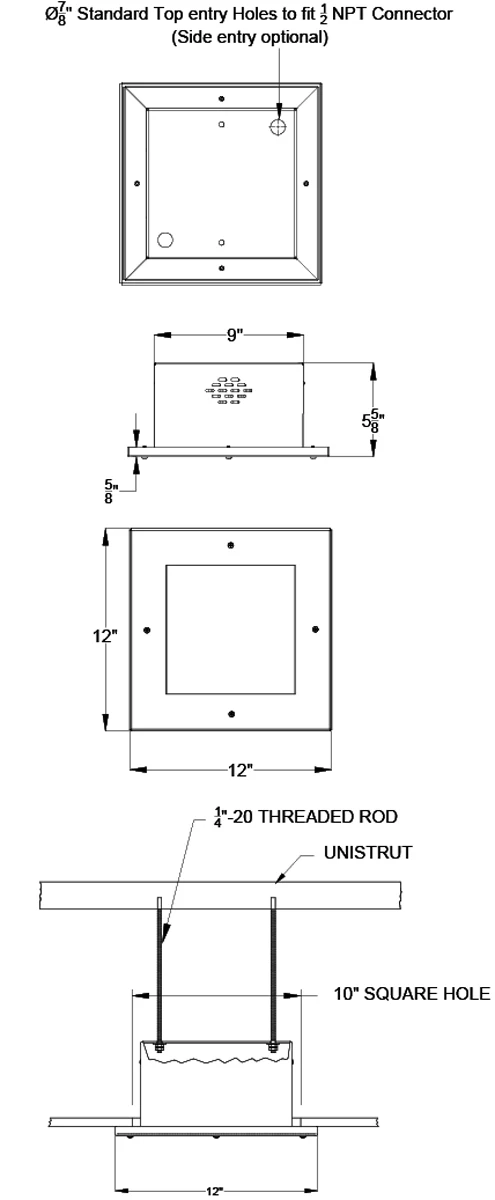

Dimensions:
