LUMEN OUTPUT (70W)
TO 277 VAC
LUMENS / WATT
Model: | CANOPY-LED |
LED | 3030 LEDs |
Input Voltage |
120~277VAC 50/60Hz |
Wattage | 25 Watts |
Lumen Output | 3,225 Lm |
Light Efficiency | 129Lm/W |
Color Temperature |
•3000K (WW) •4000K (NW) •5000K (CW) |
Lifespan | 35,000 Hours |
CSA | IP65 Rated (for wet locations) |
Warranty |
2 Year |
Model: | CANOPY-LED |
LED | 3030 LEDs |
Input Voltage |
120~277VAC 50/60Hz |
Wattage | 45 Watts |
Lumen Output | 5,805 Lm |
Light Efficiency | 129Lm/W |
Color Temperature |
•3000K (WW) •4000K (NW) •5000K (CW) |
Lifespan | 35,000 Hours |
CSA | IP65 Rated (for wet locations) |
Warranty |
2 Year |
Model: | CANOPY-LED |
LED | 3030 LEDs |
Input Voltage |
120~277VAC 50/60Hz |
Wattage | 70 Watts |
Lumen Output | 9,030 Lm |
Light Efficiency | 129Lm/W |
Color Temperature |
•3000K (WW) •4000K (NW) •5000K (CW) |
Lifespan | 35,000 Hours |
CSA | IP65 Rated (for wet locations) |
Warranty |
2 Year |
Download Product Files:
PDF | IES | CAD
Features
• Standard Color: Dark Bronze
• Corrosion Resistant Polyester Powder Paint
• Photoelectric Switch offered as standard
• Structured LED array for optimized area lighting distributions
• Light Engine consisting of reflective technology designed to optimize
application efficiency and minimize glare
Features
• Standard Color: Dark Bronze
• Corrosion Resistant
Polyester Powder Paint
• Photoelectric Switch offered
as standard
• Structured LED array for optimized
area lighting distributions
• Light Engine consisting of
reflective technology designed to
optimize application efficiency &
minimize glare

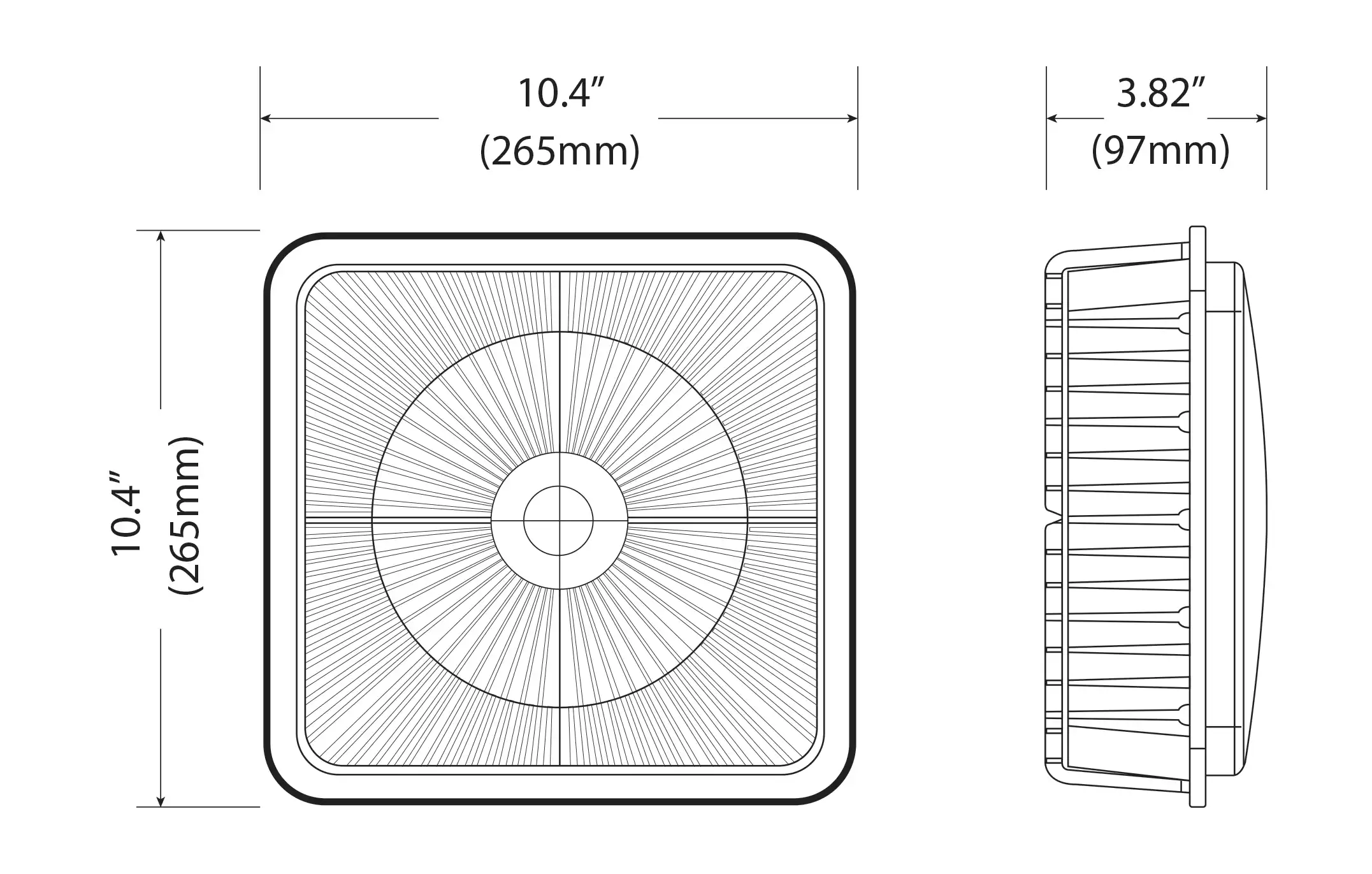

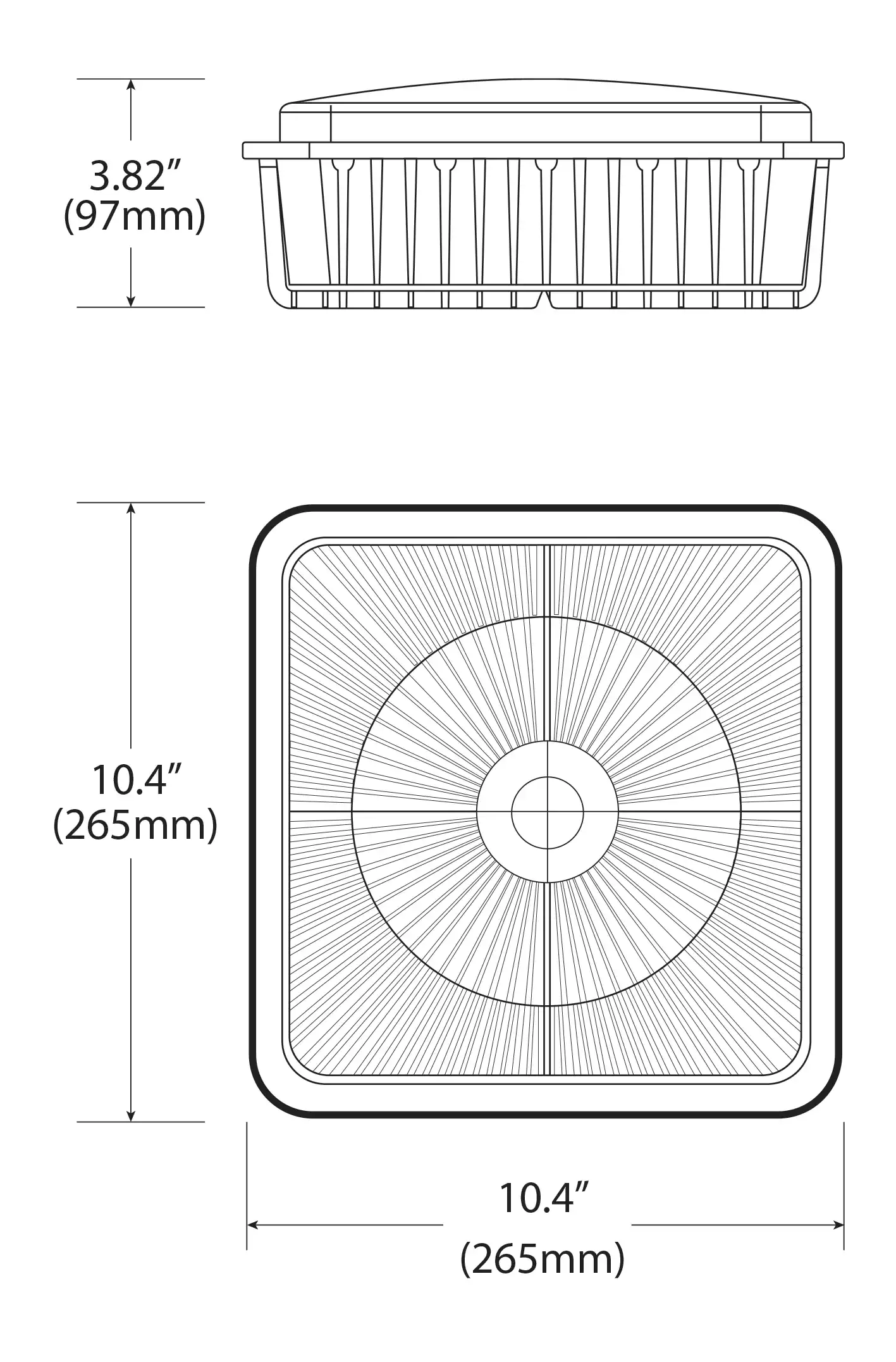

Dimensions:
