Wall Lights

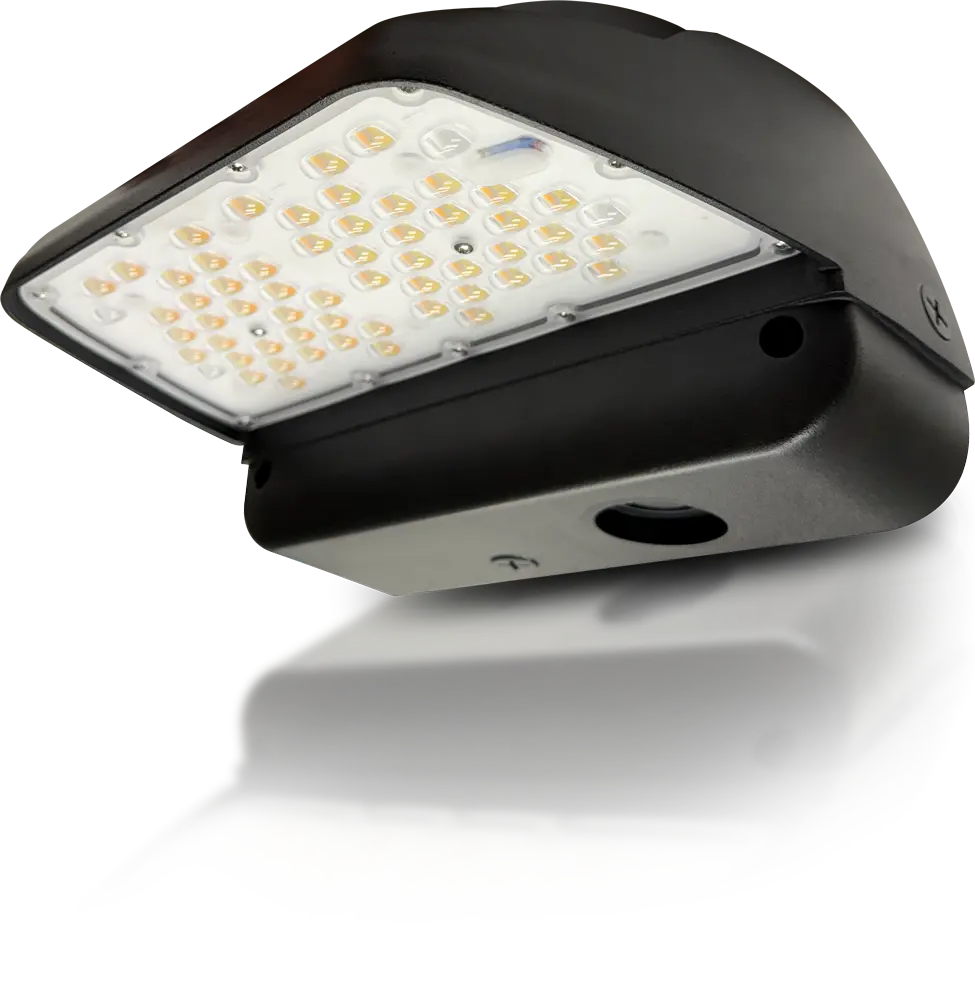

Shark Wallpack LED

Shark Wallpack is a slim-line LED fixture designed to light up/down building facades. Features our indirect lighting system produces even illumination with minimal glare and a polycarbonate shield for vandal resistance.

Contact to order

Download Product Files:

PDF

IES

CAD

Model:	SWL-40
Input Voltage	120~277VAC
Wattage	40 Watts
Lumen Output	4,800 Lm
Certifications	UL 1598

Model:	SWL-50
Input Voltage	120~277VAC
Wattage	50 Watts
Lumen Output	6,000 Lm
Certifications	UL 1598

Model:	SWL-60
Input Voltage	120~277VAC
Wattage	60 Watts
Lumen Output	7,200 Lm
Certifications	UL 1598

CONSTRUCTION

The SHARK WALLPACK is a slim-line high output LED fixture designed to light up and or down building facades. Features our indirect lighting system which produces even illumination with minimal glare. Each fixture uses off the shelf power supplies to easy maintenance. A hinged backplate allows the fixture to open for easy access to the mounted power supplies. A polycarbonate lens is used for vandal resistance.

LENS:

Injection molded clear acrylic lens is standard. Clear polycarbonate lens is optional for extra vandal resistance.

LED LIGHT ENGINE:

Utilizes proprietary LED Engines – Small LED model at 3000Lm or Medium LED model 6000Lm or 9000Lm. AC LED modules are also available to eliminate the need for power supplies. Engineered for specification grade quality and contractor-friendly installation, this fixture was designed to meet UL requirements for wet location installations.

ELECTRICAL

Our fixtures accept a full range of voltage from 120~277VAC. We also offer a 10KVA surge module to protect the internal power supplies from high voltage spikes. Each power supply is equipped with a thermal foldback circuit that will limit the current to the LED to help the power supply from overheating.

LED LIGHT ENGINE:

Utilizes proprietary LED Engines – Small LED model at 3000Lm or Medium LED model 6000Lm or 9000Lm. AC LED modules are also available to eliminate the need for power supplies. Engineered for specification grade quality and contractor-friendly installation, this fixture was designed to meet UL requirements for wet location installations.

ELECTRICAL

Our fixtures accept a full range of voltage from 120~277VAC. We also offer a 10KVA surge module to protect the internal power supplies from high voltage spikes. Each power supply is equipped with a thermal foldback circuit that will limit the current to the LED to help the power supply from overheating.

FINISH

Our standard finish is a TGIC Polyester acrylic powder coat. The standard colors are MagniBronze, Texture or Gloss Black, and Black Green. Other RAL colors are available from the factory upon request and may require an MOQ or setup fee.

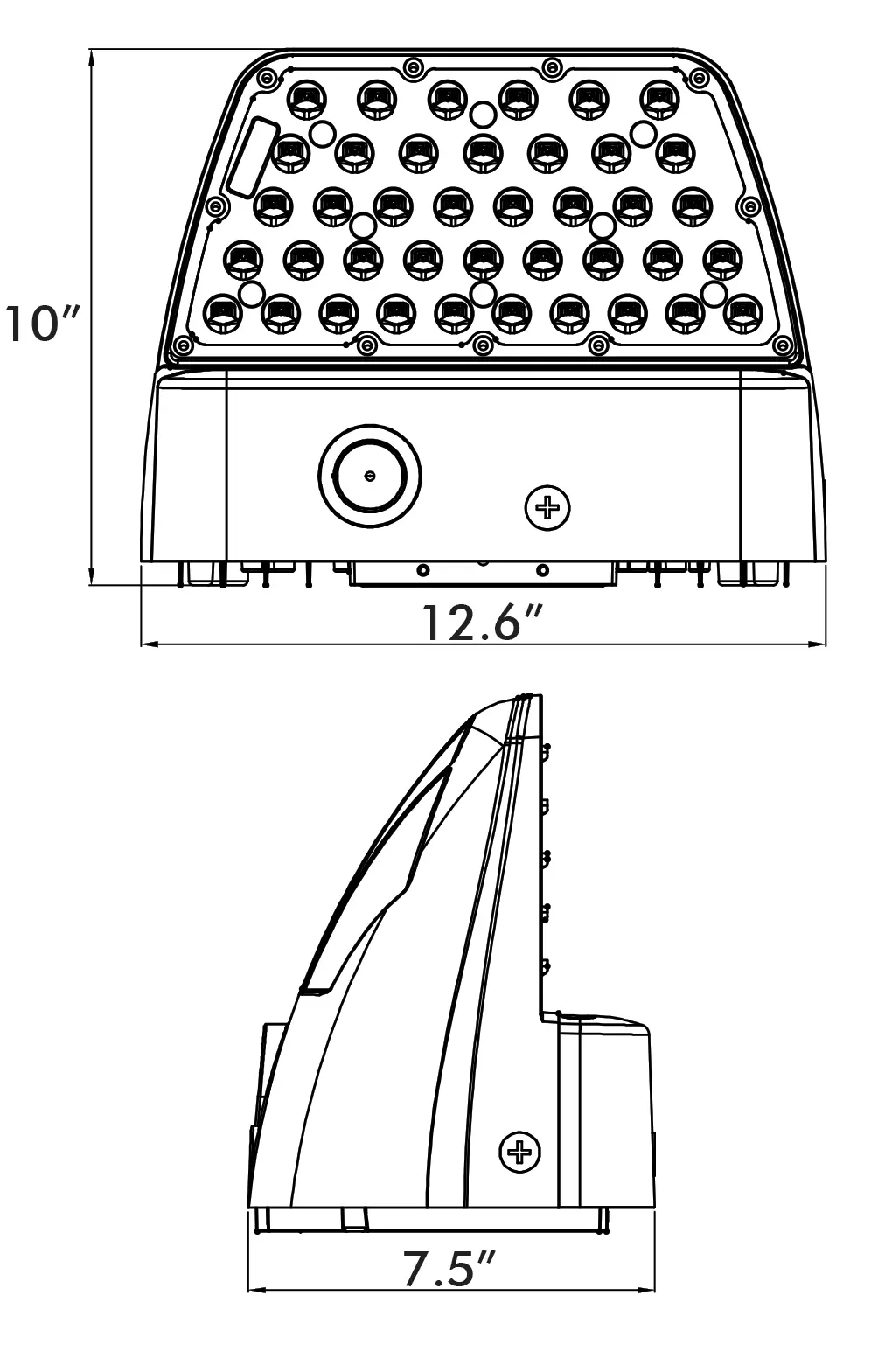

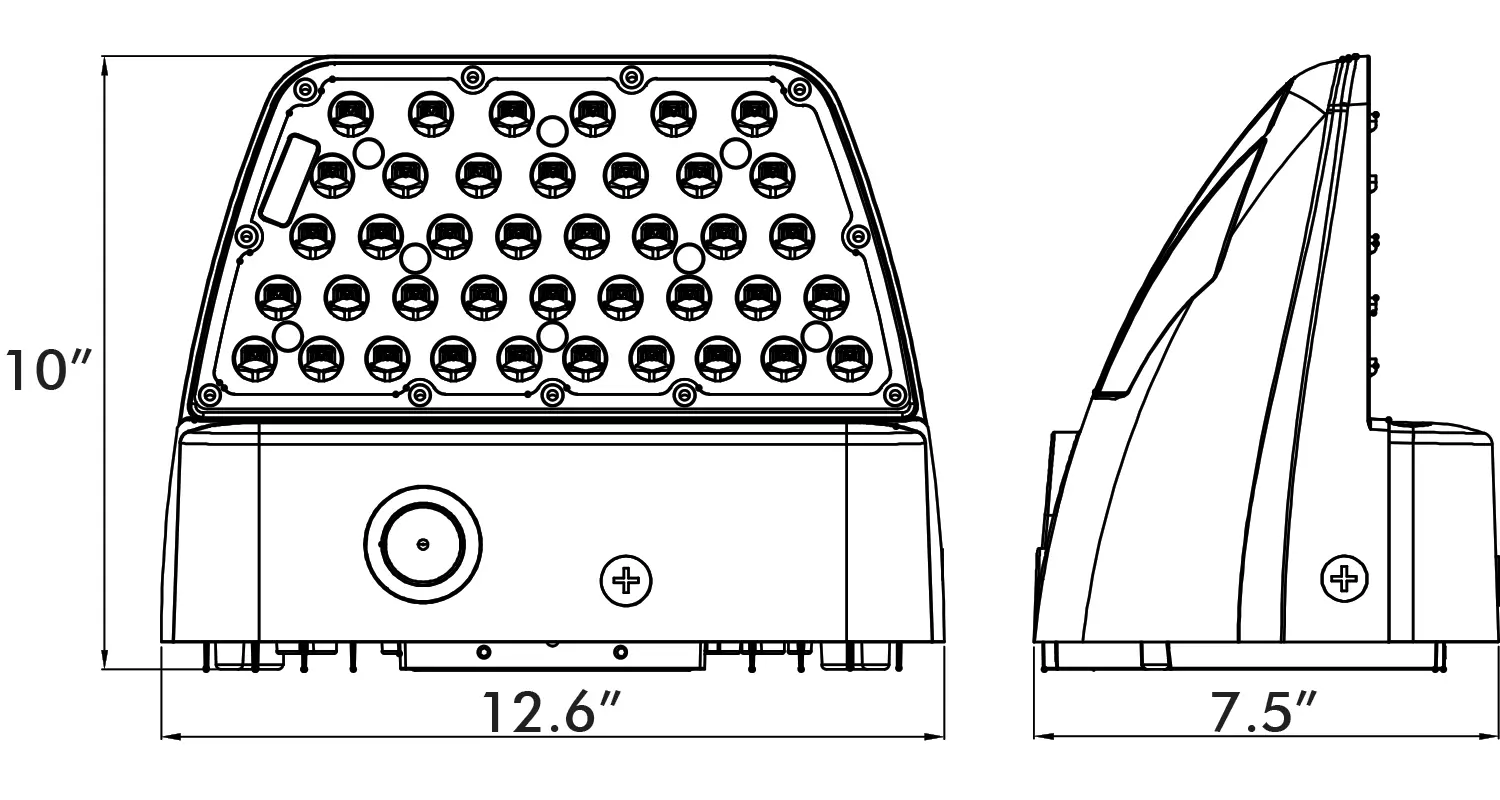

Dimensions:
