Riverside Park

The Riverside Park features a classically inspired design with great cutoff performance. The cast base fitter and cast aluminum hood help to make the Riverside Park rugged and vandal-resistant. Available in Type II, Type III, Type IV, and Type V lighting distributions.

Contact to order

Download Product Files:

PDF

IES

CAD

Model:	RP-LED-49-T2
Input Voltage	120~277VAC
Distribution	T2
Wattage	49 Watts
Lumen Output	4,740 Lm
Certifications	UL 1598

Model:	RP-LED-49-T3
Input Voltage	120~277VAC
Distribution	T3
Wattage	49 Watts
Lumen Output	4,647 Lm
Certifications	UL 1598

Model:	RP-LED-49-T4
Input Voltage	120~277VAC
Distribution	T4
Wattage	49 Watts
Lumen Output	4,900 Lm
Certifications	UL 1598

Model:	RP-LED-49-T5
Input Voltage	120~277VAC
Distribution	T5
Wattage	49 Watts
Lumen Output	5,010 Lm
Certifications	UL 1598

T3	Type III Lens
T3R	Type III Lighting Distribution Reflective Lens
T5	Type V Lens
PC	Button-Eye Photo Control
B1	Wide Base
B2	Narrow Base
B3	Smooth Base
B4	Tall Base
PST	Photoreceptacle with Twist-Lock Photocontrol
FN	Finial
IGS	Internal Glare Shield
3K	3000K Color Temperature
4K	4000K Color Temperature
5K	5000K Color Temperature

*Decorative Poles Available from Factory

CONSTRUCTION

The welded cast aluminum cage, the cast aluminum mounting base, and polycarbonate lens assembly combine to form a rugged, vandal-resistant, and aesthetically pleasing luminaire. The spun aluminum dome is hinged to the aluminum cage for easy access to the lamp and electrical components. A decorative finial tops the lantern. All hardware is corrosion-resistant or stainless steel.

LENS

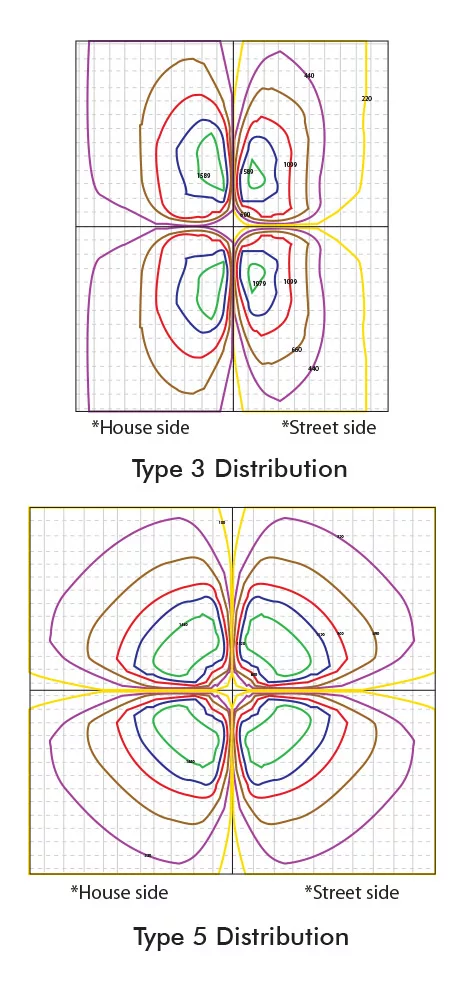

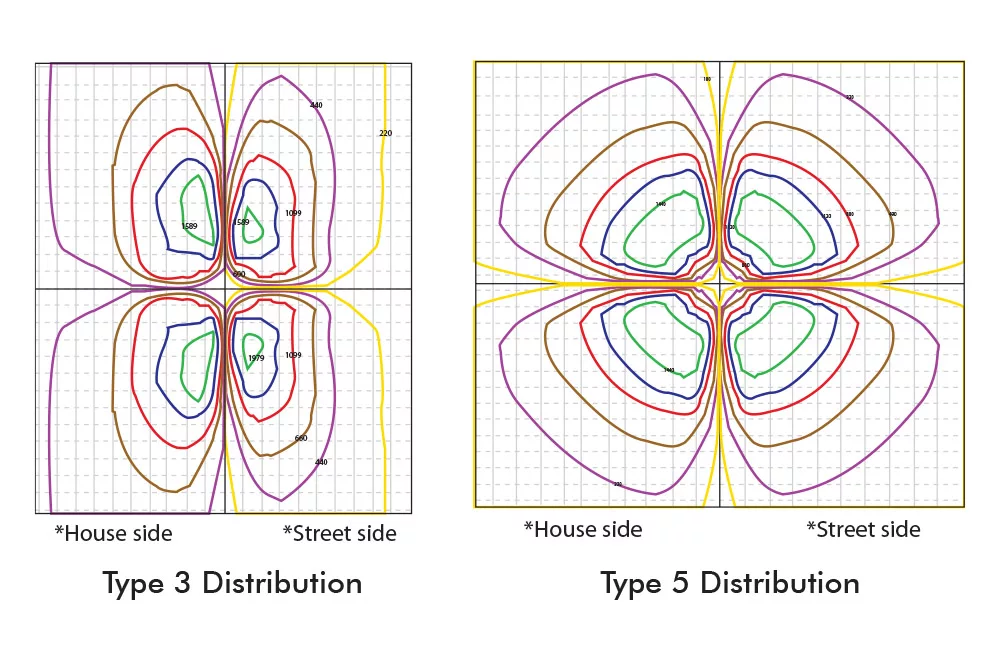

The optically clear LED lens is offered in both Type III and Type V distributions. A clear acrylic lens is standard.

LED LIGHT ENGINE

The Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface. The fixture meets UL-1598 for wet locations.

MOUNTING

Cast aluminum mounting base fits 3″ tenon and fastens securely to pole or bracket with stainless steel set screws.

LED LIGHT ENGINE

The Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface. The fixture meets UL-1598 for wet locations.
