Battery Park

Designed for economic performance with a historic flair, The Battery Park LED is a decorative post light lantern that has both a colonial look and a modern edge.

Download Product Files:

PDF
IES
CAD

LUMEN OUTPUT (98W)

TO 277 VAC

LUMENS / WATT

Model: BP-LED-49
Input
Voltage
120~277VAC
Wattage 49 Watts
Lumen Output 6,300 Lm
Certifications

UL 1598

Model: BP-LED-98
Input
Voltage
120~277VAC
Wattage 98 Watts
Lumen Output 12,600 Lm
Certifications

UL 1598

T3 Type III Lens
T5 Type V Lens
B1 Wide Base
B2 Narrow Base
B3 Smooth Wide Base
B4 Tall Base
PC Button-Eye Photo Control
FN Finial
IGS Internal Glare Shield
3K 3000K Color Temperature
4K 4000K Color Temperature
5K 5000K Color Temperature

Download Product Files:

PDF | IES | CAD

CONSTRUCTION

 The cast base fitter forms a rugged and vandal-resistant luminaire. A cast aluminum finial tops the lantern as an option. All hardware is corrosion-resistant and stainless steel.

LENS

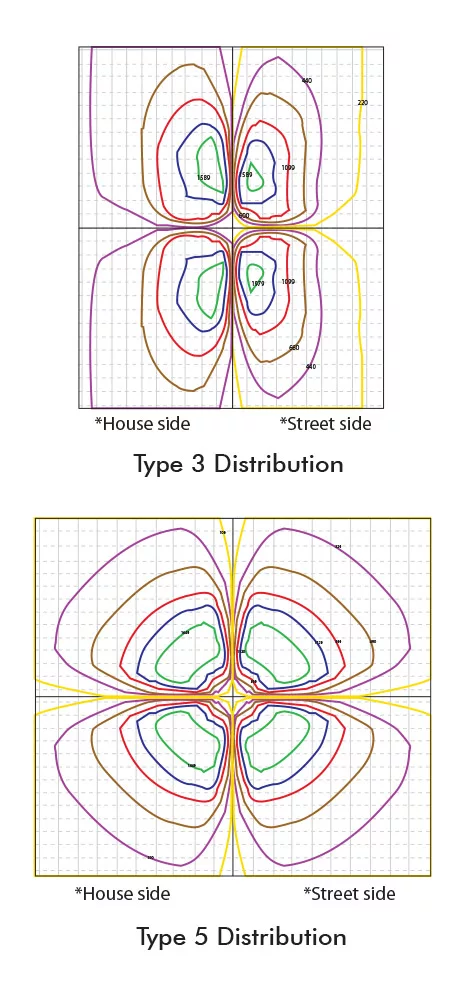

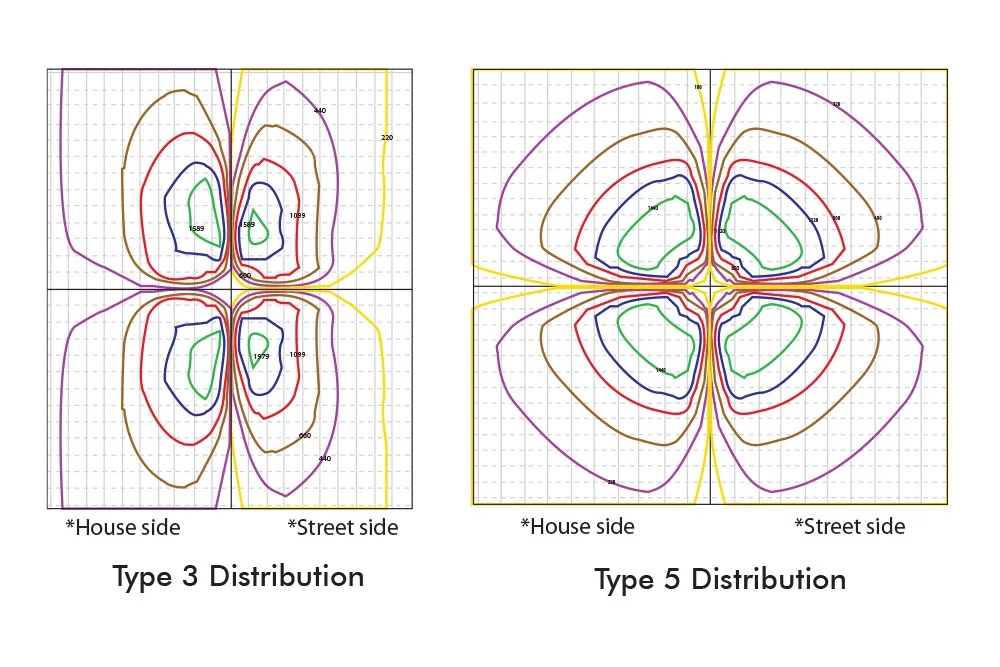

Our LED light distribution can be type 3 or type 5. The standard fixture lens is polycarbonate.

LED LIGHT ENGINE

Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The fixture meets UL-1598 for wet locations. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface.

MOUNTING

Cast aluminum mounting base fits on a 3″ pole tenon and fastens securely to the pole or bracket with stainless steel set screws.

LED LIGHT ENGINE

Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The fixture meets UL-1598 for wet locations. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface.

MOUNTING

Cast aluminum mounting base fits on a 3″ pole tenon and fastens securely to the pole or bracket with stainless steel set screws.

FINISH

Standard finish is a TGIC powder coat in MagniBlack. Other colors are available on request from the factory.

Dimensions:
