LUMEN OUTPUT (98W)
TO 277 VAC
LUMENS / WATT
Model: | PP-LED-49 |
Input Voltage |
120~277VAC |
Wattage | 49 Watts |
Lumen Output | 6,300 Lm |
Certifications |
UL 1598 |
Model: | PP-LED-98 |
Input Voltage |
120~277VAC |
Wattage | 98 Watts |
Lumen Output | 12,600 Lm |
Certifications |
UL 1598 |

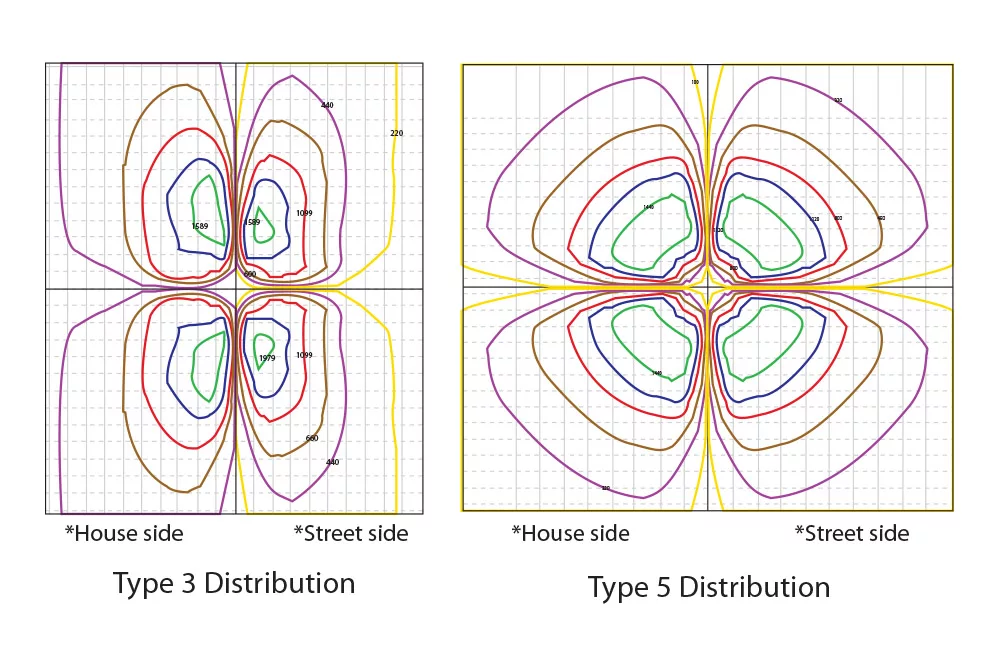

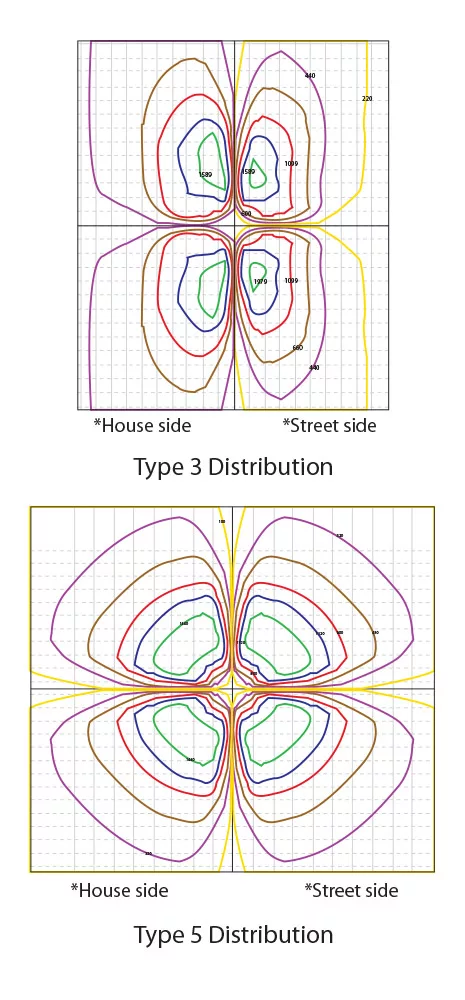

T3 | Type III Lens |
T5 | Type V Lens |
B1 | Wide Base |
B2 | Narrow Base |
B3 | Smooth Wide Base |
B4 | Tall Base |
FOPST | Fiber Optic Photocontrol |
FN | Finial |
PC | Button-Eye Photocontrol |
PLY | Polycarbonate Refractor |
3K | 3000K Color Temperature |
4K | 4000K Color Temperature |
5K | 5000K Color Temperature |
**Decorative Poles Available from Factory
Download Product Files:
PDF | IES | CAD
CONSTRUCTION
The welded cast aluminum cage, the cast aluminum mounting base, and polycarbonate lens assembly combine to form a rugged, vandal-resistant, and aesthetically pleasing luminaire. The spun aluminum dome is hinged to the aluminum cage for easy access to the lamp and electrical components. A decorative finial tops the lantern. All hardware is corrosion-resistant or stainless steel.
LENS
The optically clear LED lens is offered in both Type III and Type V distributions. A clear acrylic lens is standard.
LED LIGHT ENGINE
The Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface. The fixture meets UL-1598 for wet locations.
MOUNTING
Cast aluminum mounting base fits on a 3″ pole or tenon and fastens securely to the pole or bracket with stainless steel set screws.
LED LIGHT ENGINE
The Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface. The fixture meets UL-1598 for wet locations.
MOUNTING
Cast aluminum mounting base fits on a 3″ pole or tenon and fastens securely to the pole or bracket with stainless steel set screws.
FINISH
Fixtures are shot-blasted and powder coated in MagniBlack. Other colors are available from the factory on request.
Dimensions:
