Architectural

Wellwood Bollard

The Wellwood Bollard LED is a decorative extruded aluminum bollard that is available either lit for lighting a path or unlit for defining a border.

LUMEN OUTPUT (49W)

TO 277 VAC

LUMENS / WATT

Model: WWB-LED-49
Input Voltage: 120~277VAC
Wattage: 49 Watts
Lumen Output: 6300 Lm
Certifications: UL 1598



Download Product Files:

PDF | IES | CAD

CONSTRUCTION

Both the lit and unlit versions have an extruded aluminum body welded to a cast aluminum base. The lit bollard has a lamp/ballast assembly that is attached to the cast cap and lifts out when the cap is removed, for easy maintenance.

LENS

(Lit bollard) – A frosted cylindrical polycarbonate lens sits behind the 8 slots in the upper portion of the body.

LED LIGHT ENGINE

MagniFlood’s unparalleled light engine design is the best in the industry. Our engineers have developed a heat-dissipating technology that increases LED life dramatically. These engines can also be replaced without having to remove the luminaire. The luminaire is manufactured to meet the 1598 UL listing. All luminaires are pre-wired and factory tested. The LED engines operate from 120 volts to 265 volts (277 volts available on request). The engine concentrates its light onto a computer designed specular reflector to give an even distribution with full cut off.

FINISH

The standard color is a TGIC polyester powder coat in MagniBlack. Other colors are available on request from the factory.

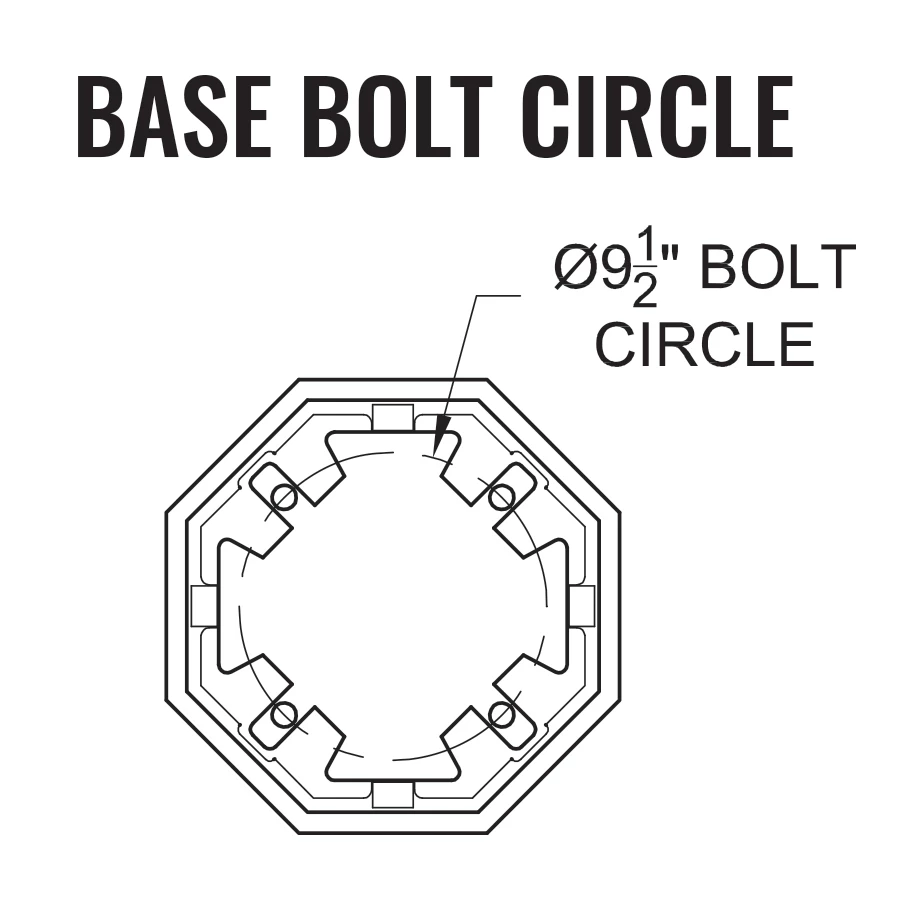

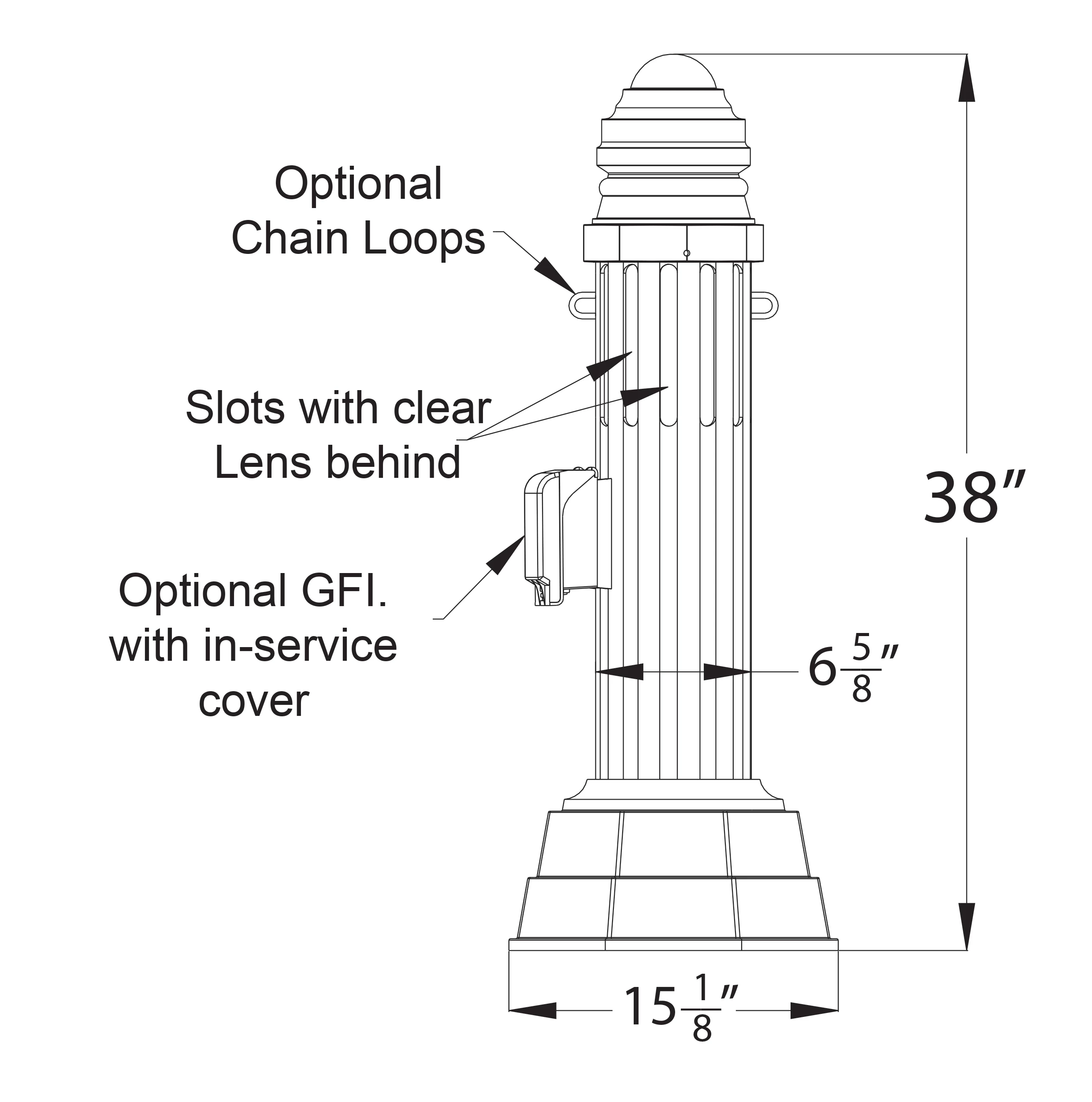

Dimensions:
