Flood Lights
The Gigantes High Mast – 1/2 was designed for applications that require tremendous amounts of light evenly spread without glare. The indirect reflector system was designed using a mirror pattern sheet reflector. This system reduces glare while maintaining a high lumen output. The die-cast housing is made from a low copper aluminum alloy giving the Gigantes High Mast – 1/2 enormous strength and durability. Each fixture is equipped with a 10KV/A surge module to help suppress transients and power surges. We only use LM80 qualified LEDs to ensure long life and low lumen depreciation over time.
Download Product Files:
LUMEN OUTPUT (300W)
TO 305 VAC
LUMENS / WATT
| Model: | ML-GIG-1/2 |
| Input Voltage |
120~305VAC/ 480VAC |
| Wattage | 100 Watts |
| Lumen Output | 12,500 Lm |
| Beam Angle | Asymmetric |
| Lifespan | 50,000 Hours |
| Dimming | 0-10V (Optional) |
| Operating Temperature: |
-40°F ~ 120°F |
| Mounting |
Yolk or Slip Fitter |
| Color |
Bronze |
| Certifications |
UL 1598 |
| Warranty |
3 Year |
| Model: | ML-GIG-1/2 |
| Input Voltage |
120~305VAC/ 480VAC |
| Wattage | 200 Watts |
| Lumen Output | 25,000 Lm |
| Beam Angle | Asymmetric |
| Lifespan | 50,000 Hours |
| Dimming | 0-10V (Optional) |
| Operating Temperature: |
-40°F ~ 120°F |
| Mounting |
Yolk or Slip Fitter |
| Color |
Bronze |
| Certifications |
UL 1598 |
| Warranty |
3 Year |
| Model: | ML-GIG-1/2 |
| Input Voltage |
120~305VAC/ 480VAC |
| Wattage | 300 Watts |
| Lumen Output | 37,500 Lm |
| Beam Angle | Asymmetric |
| Lifespan | 50,000 Hours |
| Dimming | 0-10V (Optional) |
| Operating Temperature: |
-40°F ~ 120°F |
| Mounting |
Yolk or Slip Fitter |
| Color |
Bronze |
| Certifications |
UL 1598 |
| Warranty |
3 Year |
| 3K | 3000K Color Temperature |
| 4K | 4000K Color Temperature |
| 5K | 5000K Color Temperature |
Applications
•Roadway Lighting
•Airport Security Lighting
•International Borders
•Industrial & Commercial Parking Lots
•Rail Yard Lighting
•Sporting Facilities and Stadium Lighting

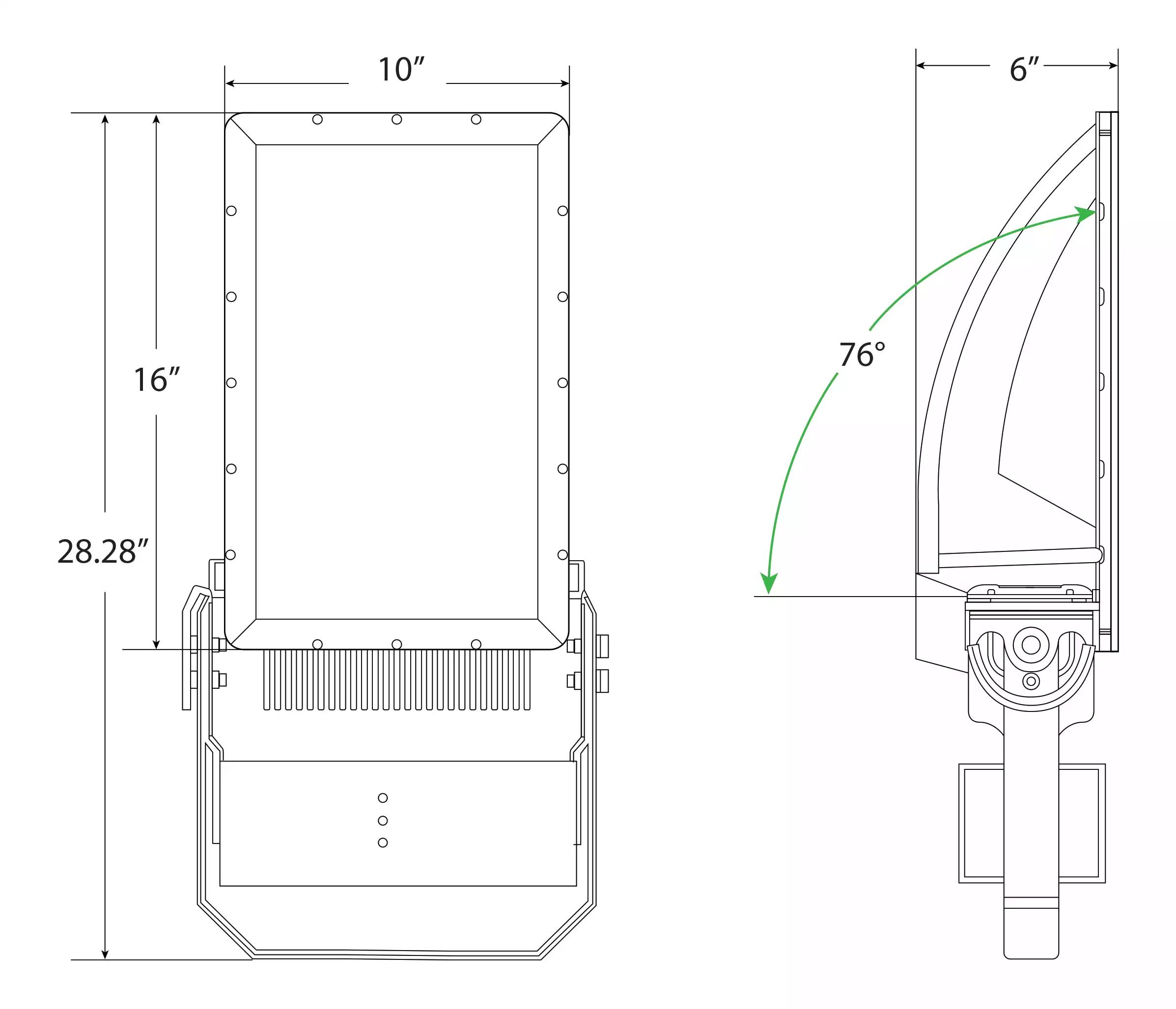

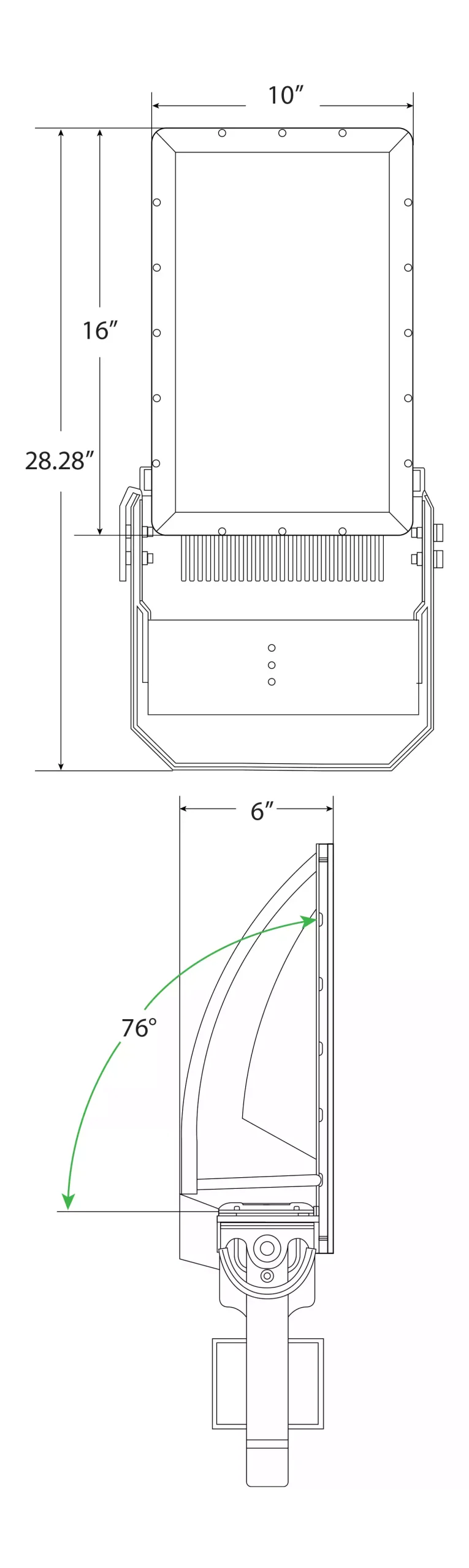

Dimensions:
