Square Steel
Poles
Catalog No. |

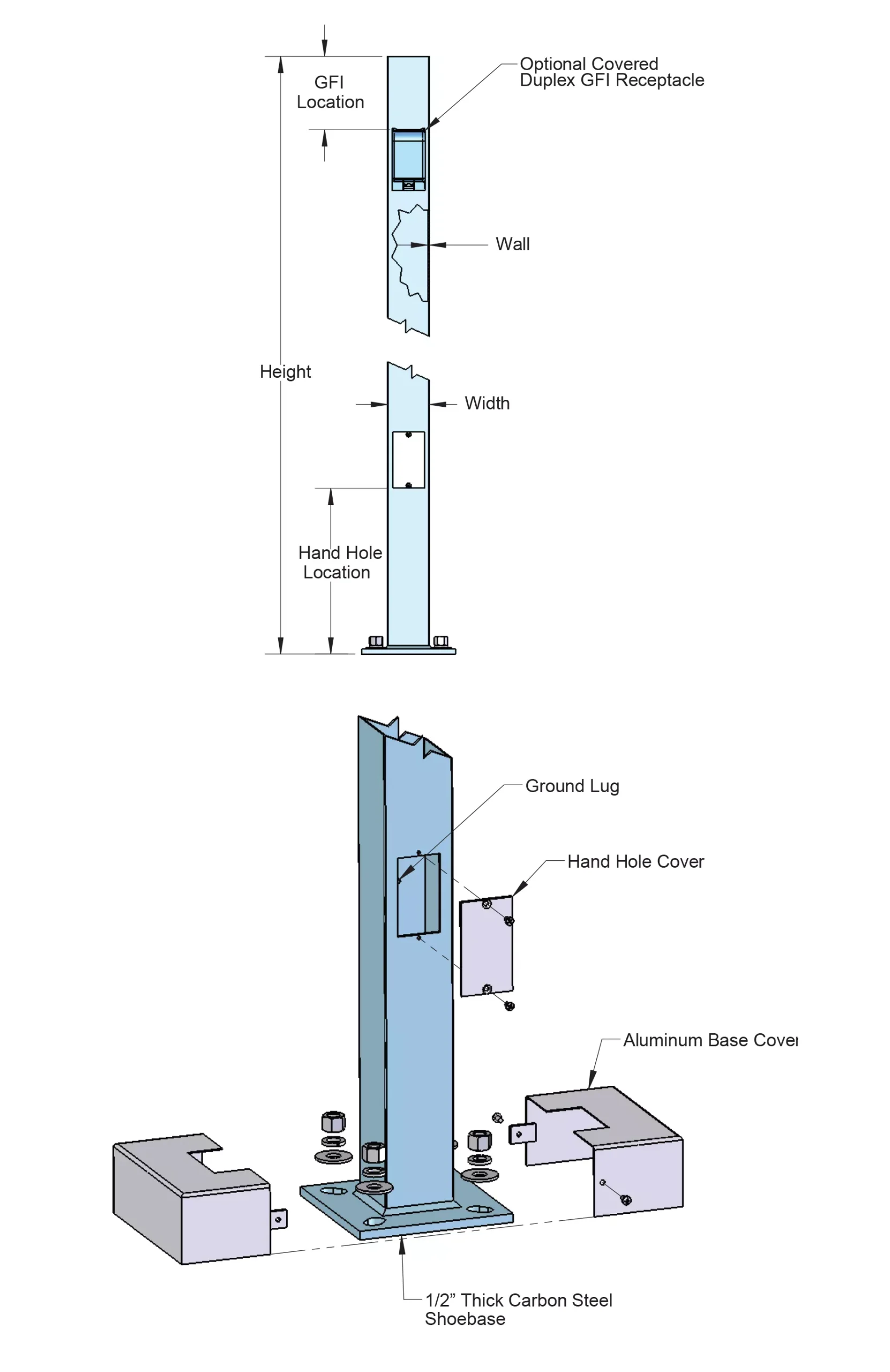

Height (ft) x Width (in) x Wall (in) |
Bolt Circle (in.) |
Maximum Fixture Weight (lbs) |
Pole “EPA” Ratio for Base Wind Velocity of: |
Anchor Bolt Dia. x Length |
Shipping Weight (lbs) |
||
| 80 MPH | 90MPH | 100MPH | ||||||
| PS4SQ10-12 | 10h X 4w x .12 | 10.5 in |
250 | 25.5 | 19.6 | 15.2 | 3/4″ x 24″ |
94 |
| PS4SQ15-12 | 15h x 4w x .12 |
10.5 in |
300 | 12.5 | 9.3 | 7.1 | 3/4″ x 24″ |
129 |
| PS4SQ20-12 | 20h x 4w x .12 | 10.5 in | 400 | 7.1 | 4.9 | 3.2 | 3/4″ x 24″ | 149 |
| PS4SQ20-18 | 20h x 4w x .18 |
10.5 in |
400 | 14.0 | 10.5 | 7.8 | 3/4″ x 30″ | 214 |
| PS4SQ25-12 | 25h x 4w x .12 |
10.5 in |
400 | 8.1 | 5.2 | 3.0 | 3/4″ x 30″ |
239 |
| PS4SQ25-18 | 25h x 4w x .18 | 10.5 in | 400 | 8.8 | 6.0 | 3.9 | 3/4″ x 30″ | 264 |
| PS5SQ20-12 | 20h x 5w x .18 |
10.5 in |
400 | 9.0 | 5.9 | 3.5 | 3/4″ x 30″ |
214 |
| PS5SQ20-18 | 25h x 5w x .18 |
10.5 in |
400 | 24.4 | 18.5 | 14.2 | 3/4″ x 30″ |
277 |
| PS5SQ25-12 | 25h x 5w x .12 | 10.5 in | 400 | 21.0 | 13.5 | 9.0 | 3/4″ x 30″ | 250 |
| PS5SQ25-18 | 25h x 5w x .18 | 10.5 in | 450 | 19.3 | 14.1 | 10.3 | 1″ x 35″ | 360 |
| PS5SQ25-25* | 25h x 5w x .25 | 10.5 in | 525 | 22.5 | 19.8 | 15.6 | 1″ x 36″ | 447 |
| PS5SQ30-18 | 30h x 5w x .18 | 11.5 in | 375 | 12.4 | 8.2 | 5.2 | 1″ x 36″ | 425 |
| PS6SQ25-18* | 25h x 6w x .18 | 12 in | 450 | 23.4 | 17.2 | 12.4 | 1″ x 36″ | 406 |
| PS6SQ25-25* | 25h x 6w x .18 | 12 in | 525 | 27.4 | 22.1 | 16.1 | 1″ x 36″ | 540 |
| PS6SQ30-18* | 30h x 6w x .18 | 12 in | 525 | 20.5 | 14.3 | 9.8 | 1″ x 36″ | 515 |
| PS6SQ30-25* | 30h x 6w x .25 | 12 in | 525 | 22.1 | 17.8 | 14.2 | 1″ x 36″ | 650 |
