RETROFITS

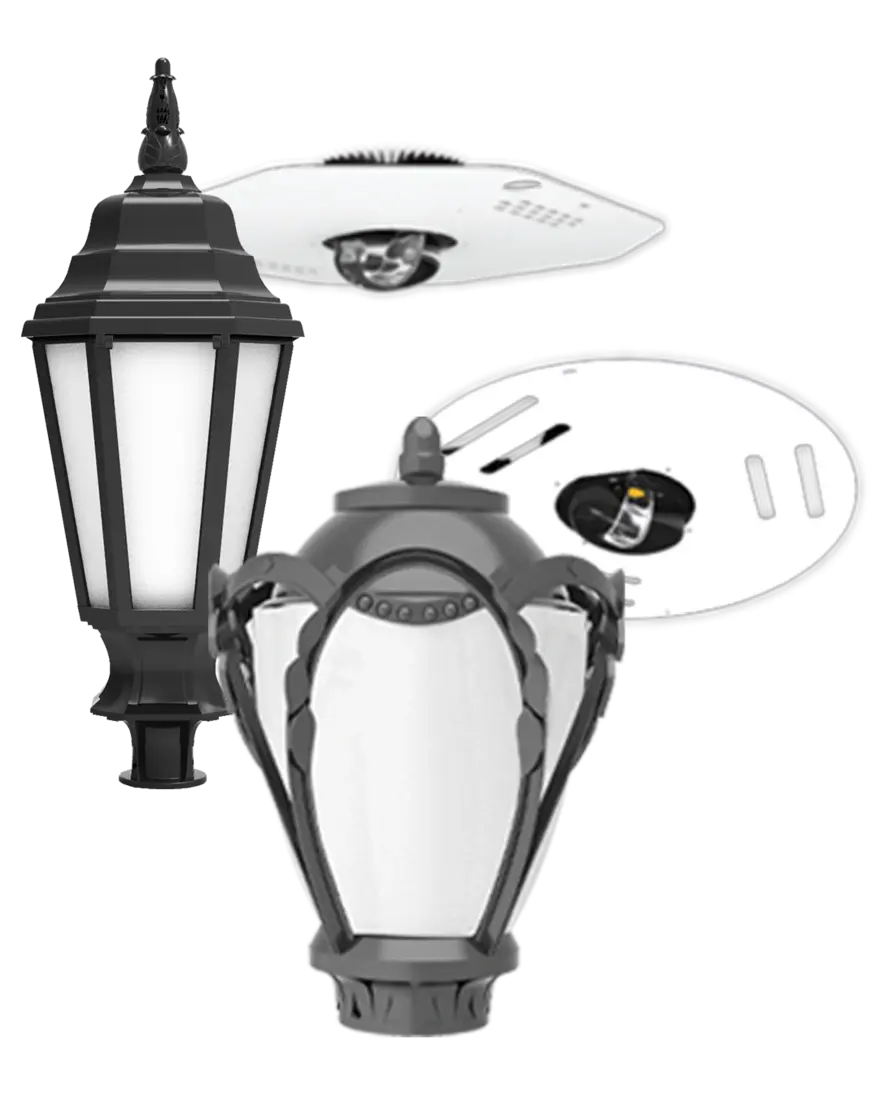

LED Post Top Retrofit

MagniFlood’s LED Post Top Retrofit kits provide an energy-efficient way to upgrade from old HPS or HID lamps to modern LED technology. These retrofits fit into existing fixtures, drastically cutting energy use and maintenance costs while improving light quality.

Download Product Files:

PDF
IES
CAD
Model: v1
Wattage •49 Watts
•98 Watts
Lumen Output •6,800Lm (49W)
•13,600Lm
(98W)
Lumens/Watt

138 Lm/W

Color Temperature

•3K – 3000K
•4K – 4000K
•5K – 5000K

Model: v2
Wattage •49 Watts
•98 Watts
Lumen Output •6,615Lm (49W)
•13,230Lm
(98W)
Lumens/Watt

135 Lm/W

Color Temperature

•3K – 3000K
•4K – 4000K
•5K – 5000K

Model: v3
Wattage •54 Watts
Lumen Output •6,900Lm
Lumens/Watt

127 Lm/W

Color Temperature

•3K – 3000K
•4K – 4000K
•5K – 5000K

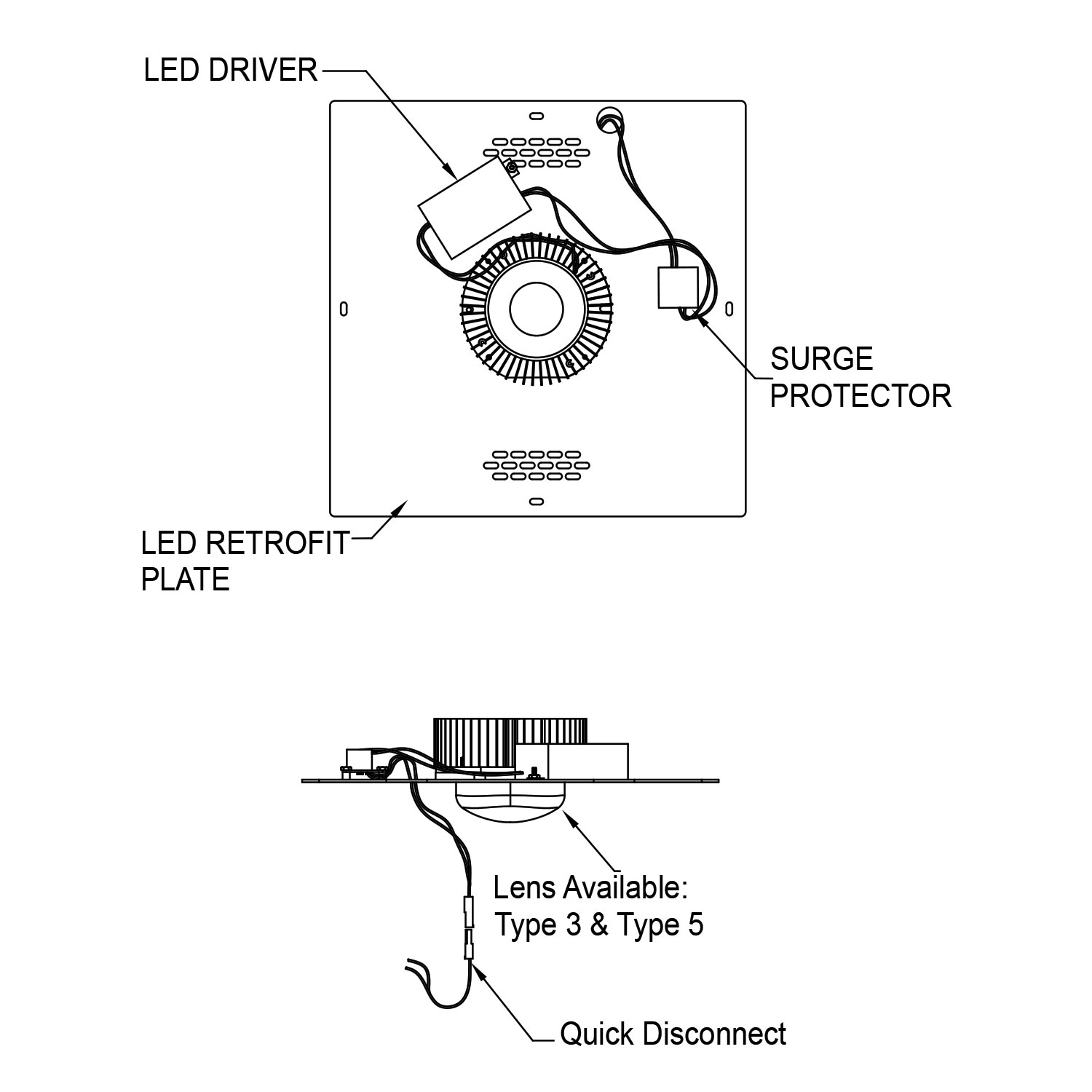

Version 1 | Dimensions:

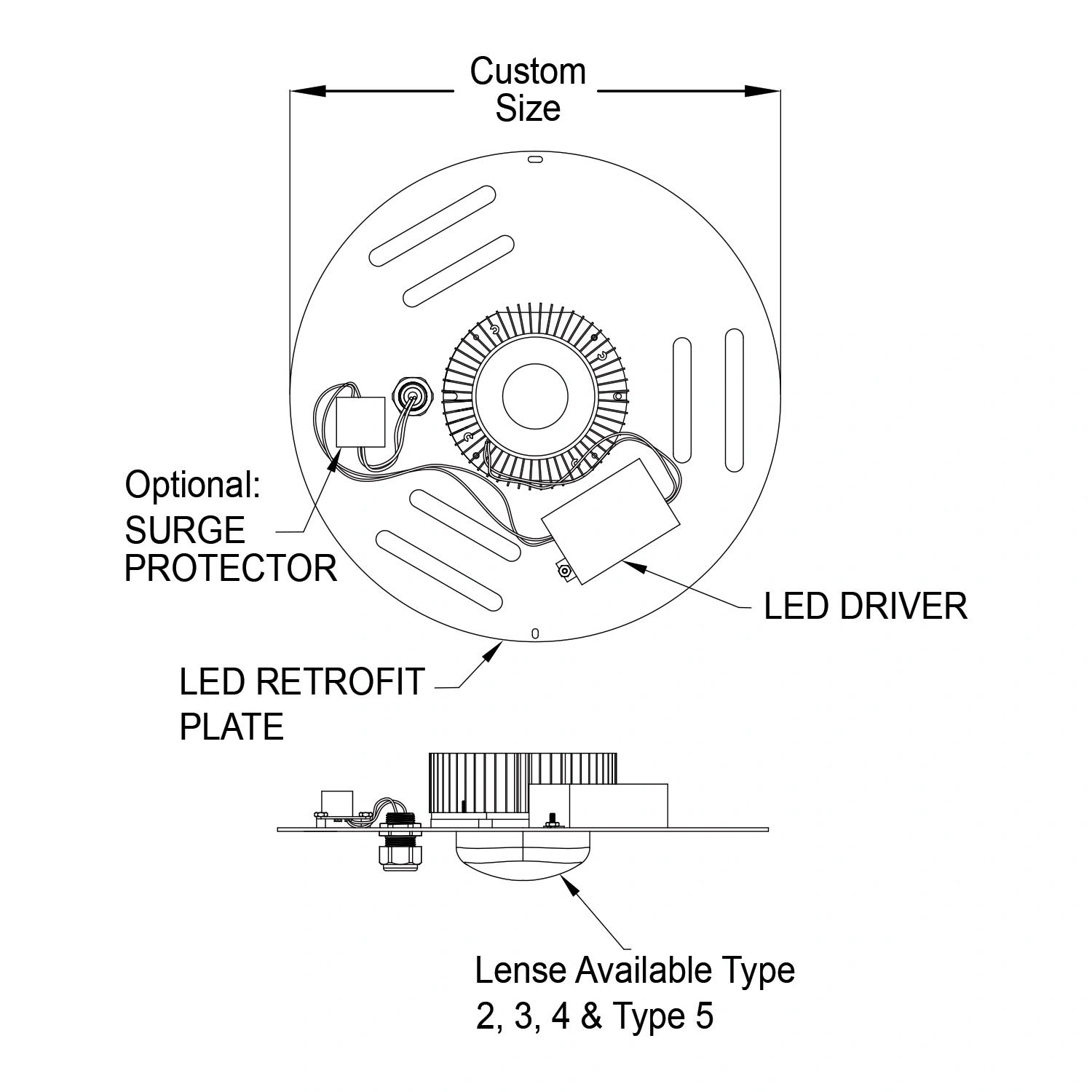

Version 2 | Dimensions:

Version 3 | Dimensions:
