POST TOPS
Central Ave.
Designed for economic performance with a historic flair, The Central Ave LED is a decorative post light lantern that has both a classic look and a modern edge that makes it both aesthetically pleasing and vandal resistant.
Download Product Files:
LUMEN OUTPUT (98W)
TO 277 VAC
LUMENS / WATT
| Model: | L10-LED-49 |
| Input Voltage |
120~277VAC |
| Wattage | 49 Watts |
| Lumen Output | 6,300 Lm |
| Certifications |
UL 1598 |
| Model: | L10-LED-98 |
| Input Voltage |
120~277VAC |
| Wattage | 98 Watts |
| Lumen Output | 12,600 Lm |
| Certifications |
UL 1598 |
| T3 | Type III Lens |
| T5 | Type V Lens |
| LR | Ladder Rest |
| PST | Photoreceptacle with Twist-Lock |
| FOPST | Fiber Optic Photocontrol |
| CL | Clear Polycarbonate Lens |
| 3K | 3000K Color Temperature |
| 4K | 4000K Color Temperature |
| 5K | 5000K Color Temperature |
Download Product Files:
PDF | IES | CAD
CONSTRUCTION
Welded copper-free 443 alloy cast aluminum cage has a hinged cast aluminum hood, a cast aluminum mounting base, and polycarbonate lens panels to form a rugged, vandal-resistant, aesthetically pleasing luminaire. A cast aluminum finial tops the lantern. All hardware is stainless steel.
LENS
The lens is fabricated from a pebble surfaced polycarbonate. Smooth polycarbonate is available as an option.
LED LIGHT ENGINE
The Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The fixture meets UL-1598 for wet locations. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface. The LED lens is available as Type III or Type V lighting distribution.
MOUNTING
The slip fitter is designed to slip 3″ O.D. pipe or tenon and secures with (3) corrosion-resistant and tamper-resistant set screws.
LED LIGHT ENGINE
The Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The fixture meets UL-1598 for wet locations. The driver operates from 120-277 volt with an optional 0-10 volt dimming interface. The LED lens is available as Type III or Type V lighting distribution.
MOUNTING
The slip fitter is designed to slip 3″ O.D. pipe or tenon and secures with (3) corrosion-resistant and tamper-resistant set screws.
FINISH
Standard finish is a TGIC powder coat in MagniBlack. Other colors are available on request from the factory.

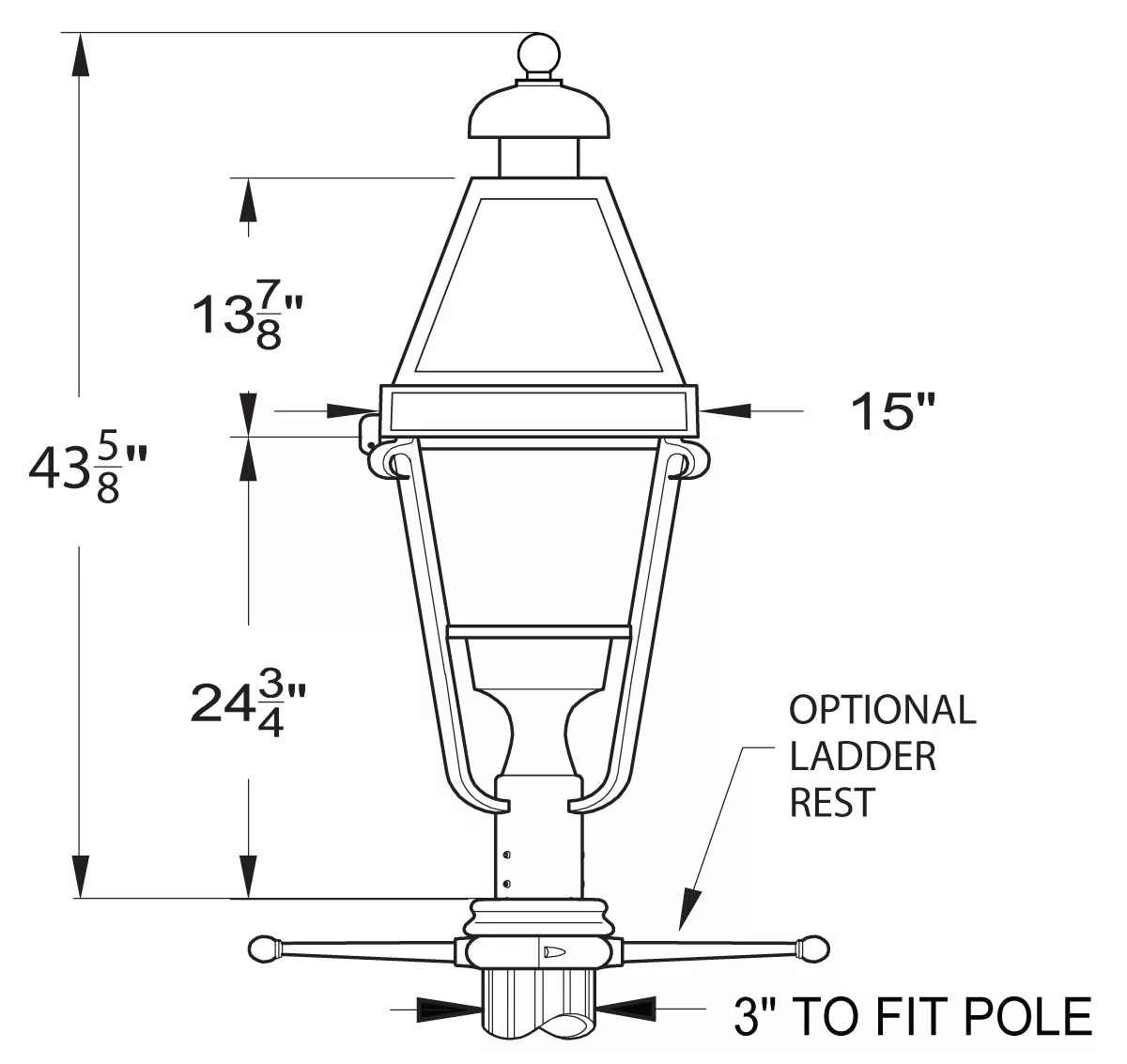

Dimensions:
