Roadway

Knickerbocker

The Knickerbocker LED is a stylish pedestrian/roadway luminaire that was designed with roadway safety and energy efficiency in mind- providing for evenly distributed lighting with maximum lumen output and minimal glare. Glare reduction and uniformity of light distribution are two factors in reducing high speed roadway accidents.

Download Product Files:

PDF | IES | CAD

LUMEN OUTPUT (147W)

TO 277 VAC

LUMENS / WATT

Model: BC-LED-49
Input Voltage: 120~277VAC
Wattage: 49 Watts
Lumen Output: 6,300 Lm
Certifications: UL 1598
Model: BC-LED-98
Input Voltage: 120~277VAC
Wattage: 98 Watts
Lumen Output: 12,600 Lm
Certifications: UL 1598
Model: BC-LED-147
Input Voltage: 120~277VAC
Wattage: 147Watts
Lumen Output: 18,900 Lm
Certifications: UL 1598
T3 Type III Lighting Distribution
T5 Type V Lighting Distribution
PC Button-Eye Photocontrol
HPM Horizontal Pole-Mounting Fitter
EXT Extended Refractor
PST Photoreceptacle with Twist-Lock Photocontrol
PLY Polycarbonate Refractor
3K 3000K Color Temperature
4K 4000K Color Temperature
5K 5000K Color Temperature

Download Product Files:

PDF | IES | CAD

CONSTRUCTION

The Knickerbocker LED features a copper-free 443 alloy cast aluminum pole fitter/ballast compartment, cast aluminum door frame with prismatic polycarbonate lens, and a spun aluminum housing. The removable ballast tray makes MagniFlood’s tear drop uniquely easy to install and maintain. All hardware is corrosion-resistant. All external hardware is stainless steel.

LENS

The optically clear LED lens is offered in both Type III and Type V distributions. A clear acrylic lens is standard.

LED LIGHT ENGINE

Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The fixture meets UL-1598 standards for wet locations. The driver operates from 120-277 volts with an optional 0-10 volt dimming interface.

MOUNTING

The cast hex nut hub (which is part of the fitter) attaches to 2″ threaded pipe. Optional mountings available.

LED LIGHT ENGINE

Mag-LED light engine with built-in lens photometry in an IP-66 rated system. The fixture meets UL-1598 standards for wet locations. The driver operates from 120-277 volts with an optional 0-10 volt dimming interface.

MOUNTING

The cast hex nut hub (which is part of the fitter) attaches to 2″ threaded pipe. Optional mountings available.

FINISH

Standard finish is TGIC acrylic powder coat in MagniBlack. Other colors available from factory on request.

For Any HID Requests please contact factory.

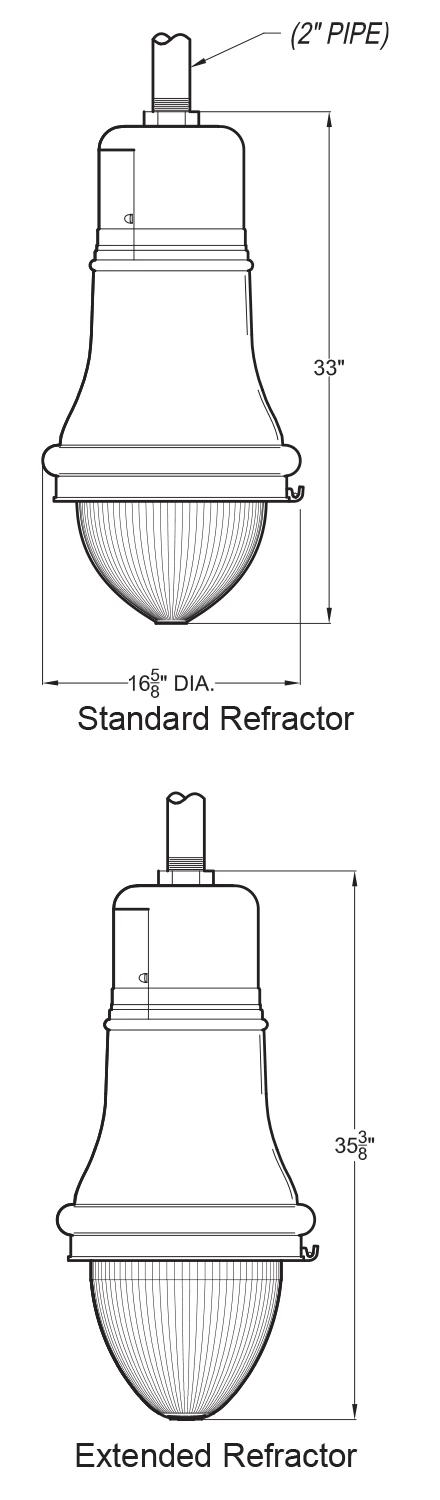

Dimensions:
